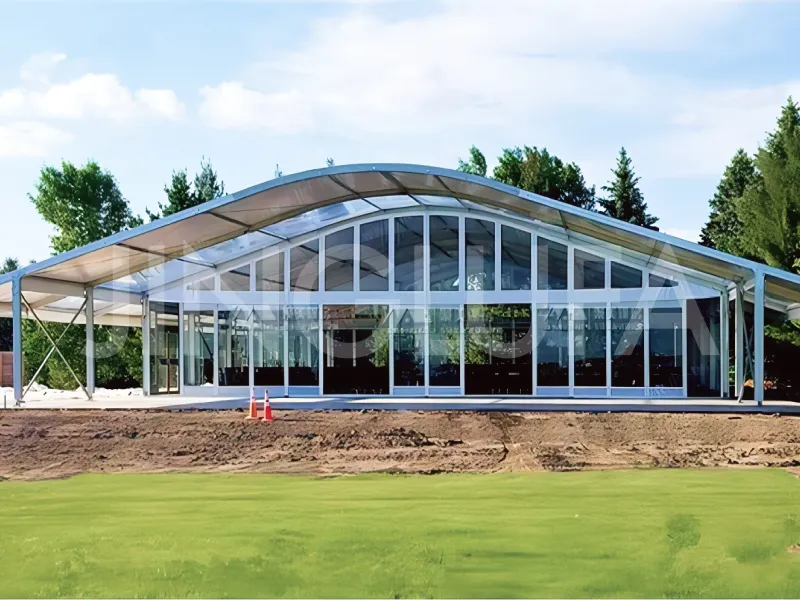

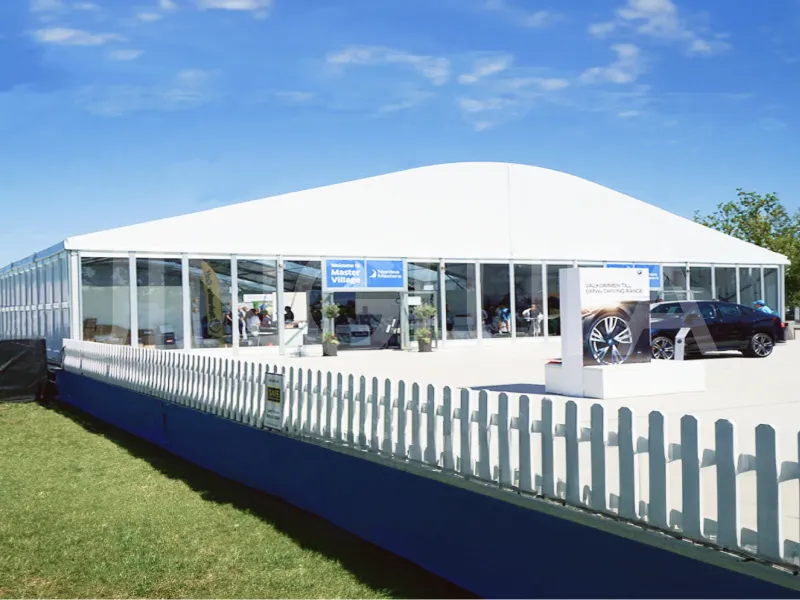

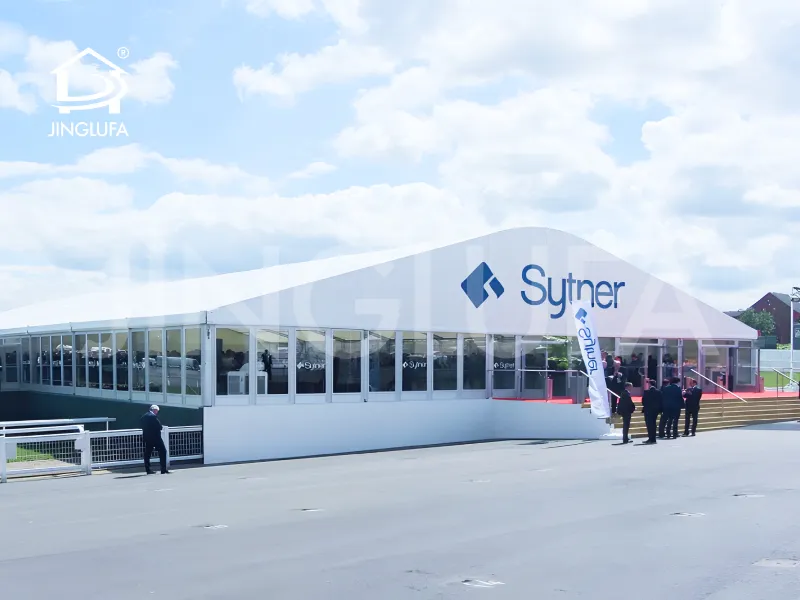

When your project demands superior architectural aesthetics combined with maximum internal overhead clearance, a commercial arch tent delivers the ideal structural solution. Engineered with a smooth, curved roofline, this versatile shelter system enhances visual impact while offering exceptional wind resistance and structural performance. From high-profile sports arenas and music festivals to large-scale exhibitions, our curved marquee solutions combine sophisticated design with industrial-grade durability.

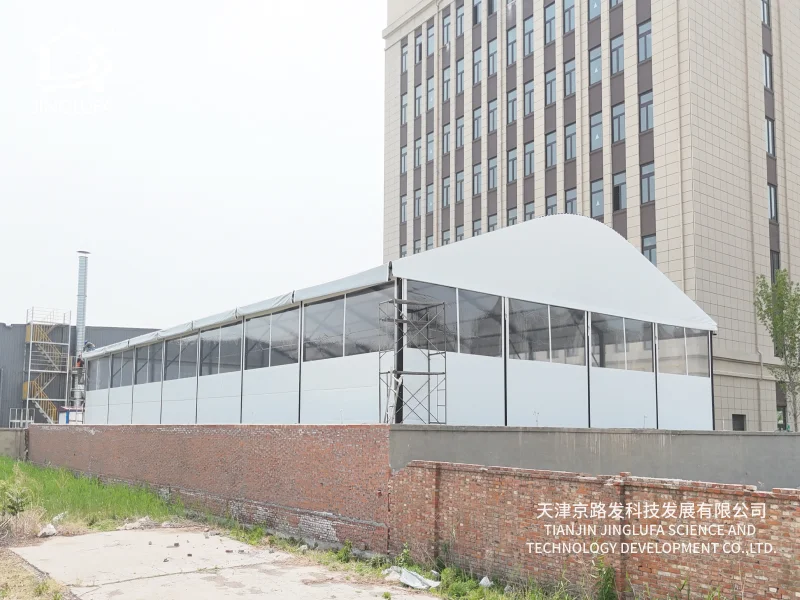

The distinctive roof curvature of our arch tent is not merely a visual highlight—it is a functional design feature that accelerates rainwater runoff, reduces snow accumulation, and improves aerodynamic stability against strong winds. Built on a modular aluminum alloy framework with hot-dip galvanized steel joints, this tunnel marquee design eliminates internal support columns, giving you 100% usable clear-span interior space.
A major advantage of the Jinglufa structural system is component interchangeability. The core framework allows you to flexibly convert the curved roof configuration into a standard A-frame roof using interchangeable parts, maximizing your rental fleet inventory efficiency and reducing capital expenditure.
Streamlined Curved Roofline: Features an aesthetically striking arc profile that adds a premium, modern feel to temporary and semi-permanent venues.
Extended Roof Eaves Options: Can be engineered with customized extended roof overhangs (cantilevered eaves) to provide extra shade, entrance weather protection, and enhanced rainwater deflection.
Modular Arc Conversion: Highly interchangeable components allow effortless switching between arc top and peak top configurations on the same base framework.
Rapid Assembly & Scalability: Designed with pre-engineered modular bays, allowing fast installation, easy dismantling, and flexible length expansion or reduction.
All-Terrain Ground Anchoring: Installs reliably on grass, concrete, asphalt, gravel, or sand using ground anchors, expansion bolts, or heavy ballast blocks.

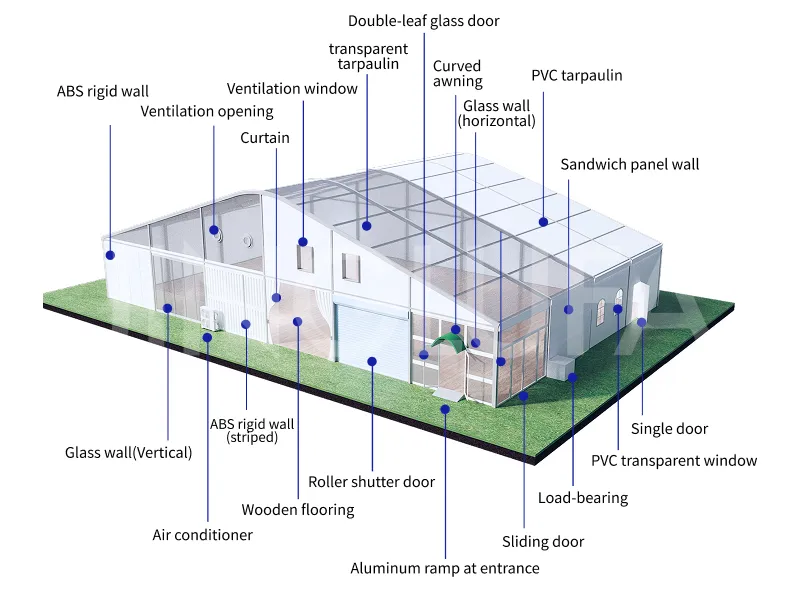

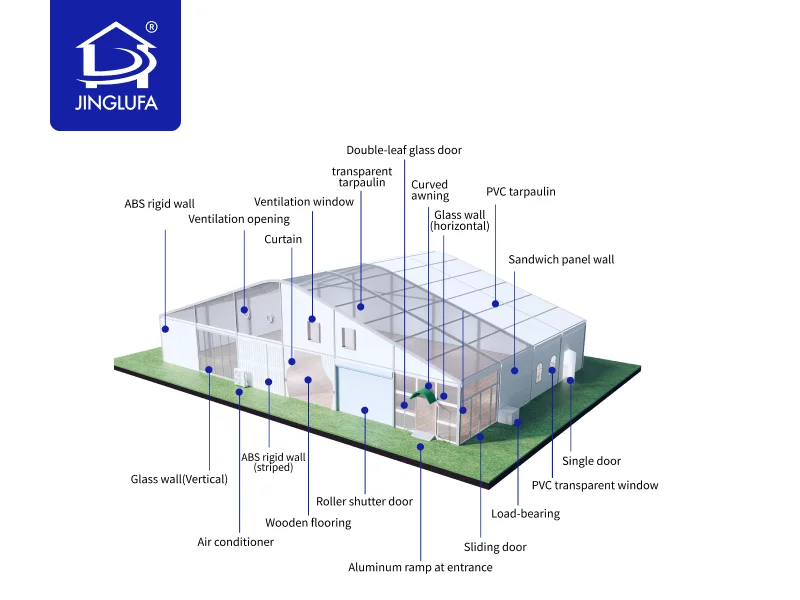

Complete Accessory Package: Fully compatible with glass curtain walls, hard ABS paneling, double-wing glass doors, clear PVC covers, cassette wooden flooring, and climate control HVAC systems.
| Span (m) | Bay Distance (m) | Eave Height (m) | Ridge Height (m) | Technical Notes & Applications |

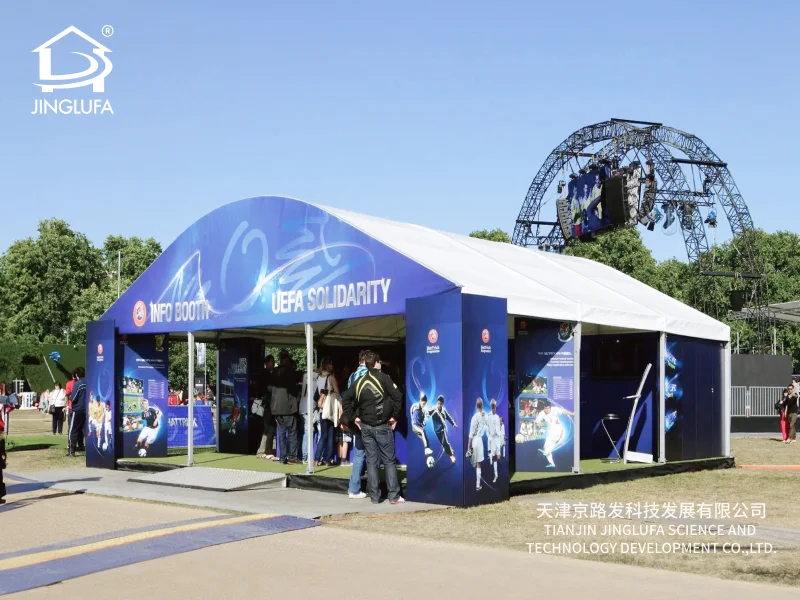

| 5m – 10m | 3m | 2.5m | 3.26m – 4.1m | Small Arcum tent (curved arch tent). Ideal for VIP lounge, outdoor brand activation, security checkpoints, and walkway canopies. |

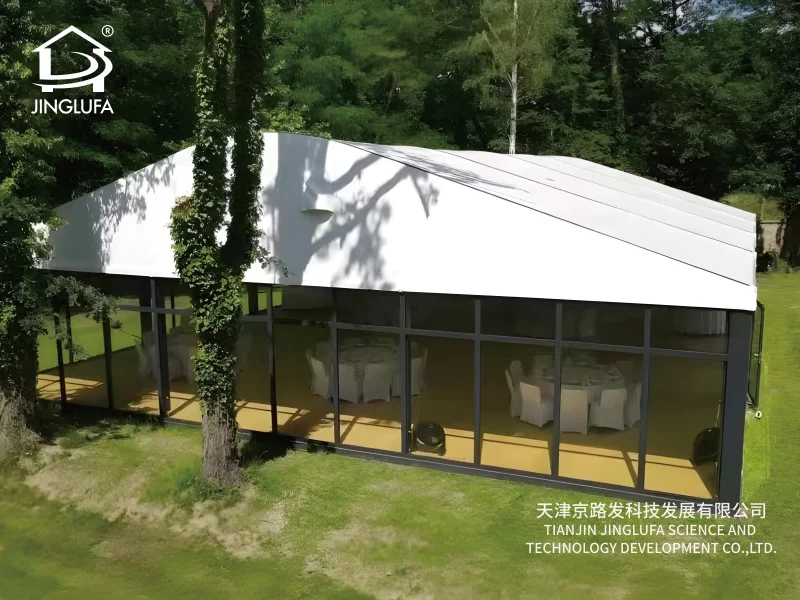

| 12m | 3m | 3m | 4.93m | Medium clear span Arcum marquee structure. Perfect for high-end wedding venues, fashion show runways, and catering halls. |
| 15m – 20m | 5m | 3m | 5.36m – 5.98m | Standard 5m bay spacing curved roof tent. Designed for tennis courts, swimming pool covers, corporate events, and regional exhibitions. |
| 25m – 40m | 5m | 4m | 7.91m – 10.24m | Large-scale heavy-duty Arcum structure. High eave height with spacious headroom, engineered for sports arenas, warehouse shelters, and mega event venues. |
Note: Arcum tent length can be extended indefinitely in 3m or 5m modular bay distance increments. Custom dimensions, reinforced curved aluminum profiles (6061-T6), and tailored engineered wind-load options are available upon request.

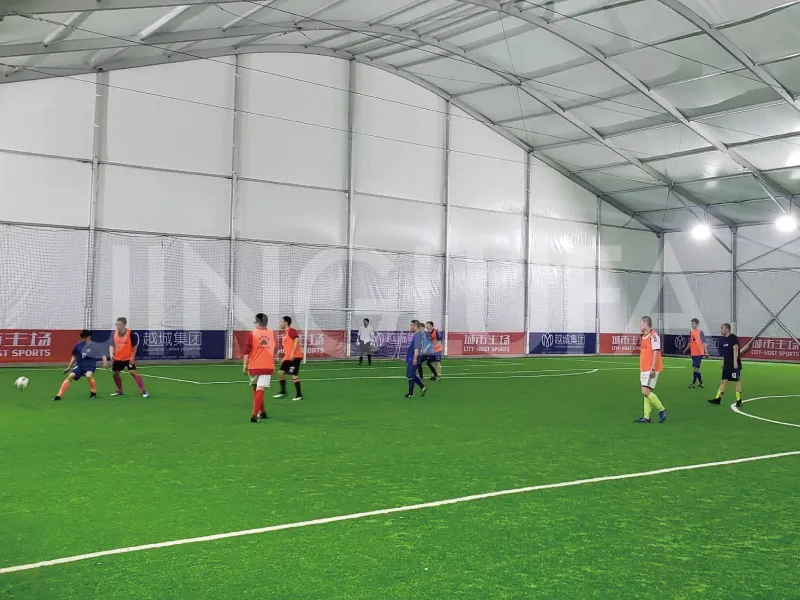

The generous interior height and clear span layout make these industrial tent structures particularly suitable for applications requiring high overhead clearance, such as indoor sports fields and large audience venues.
Application Venue | Operational Advantage | Recommended Configuration |

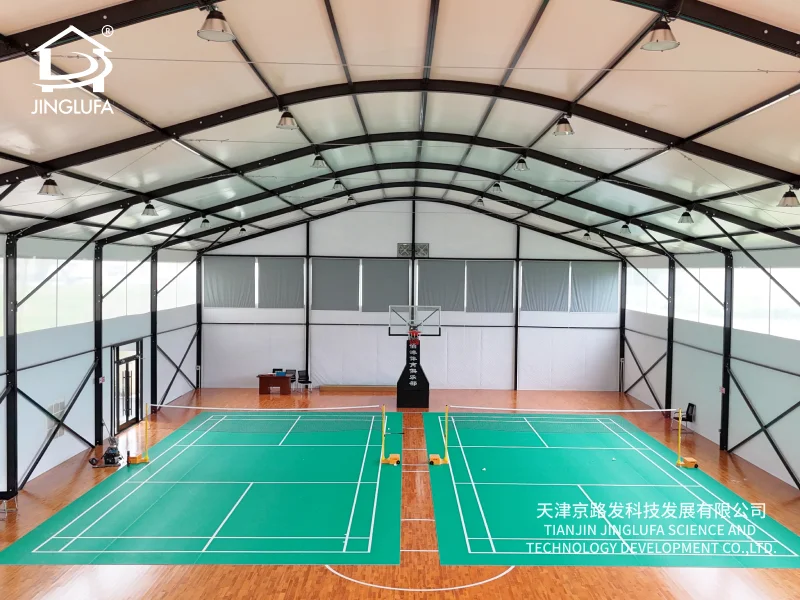

Sports Arenas & Courts | High ceiling clearance for tennis, football & basketball | Translucent PVC roof + high-side ABS hard walls |

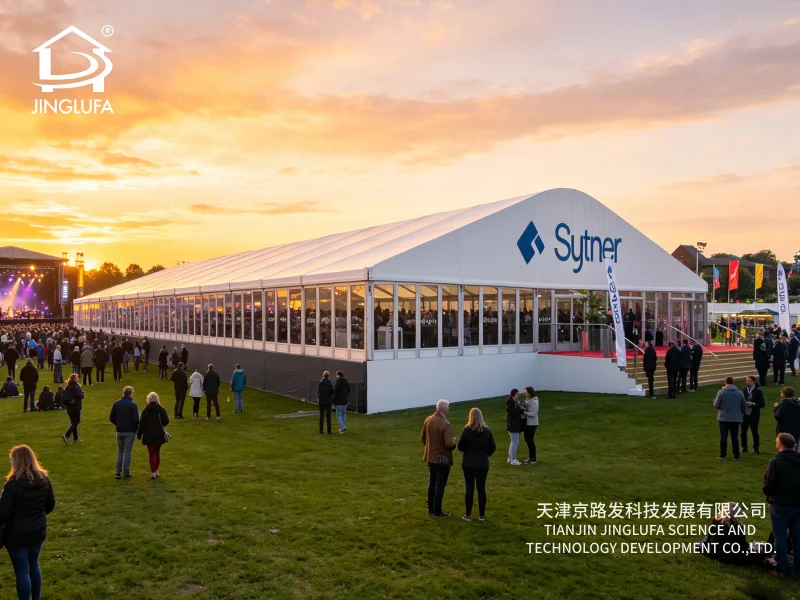

Exhibitions & Music Festivals | Unobstructed stage views & high-capacity flow | Extended roof eaves + double glass door entryways |
Commercial Event Venues | Modern architectural aesthetics for corporate galas | Full clear PVC roof & sidewalls with luxury lining |
Industrial Warehousing | Easy clearance for high-stack pallets & forklifts | Heavy-duty insulated PVC + industrial roll-up doors |
As a specialized supplier of heavy-duty industrial tent structures, Jinglufa delivers certified shelter solutions directly from our factory to global markets. We support custom spans, tailored eave heights, structural wind-load engineering, and full OEM branding.
Elevate your event or sports venue infrastructure today.
[Contact Our Project Engineers for a Custom Quote & Technical Drawing]
