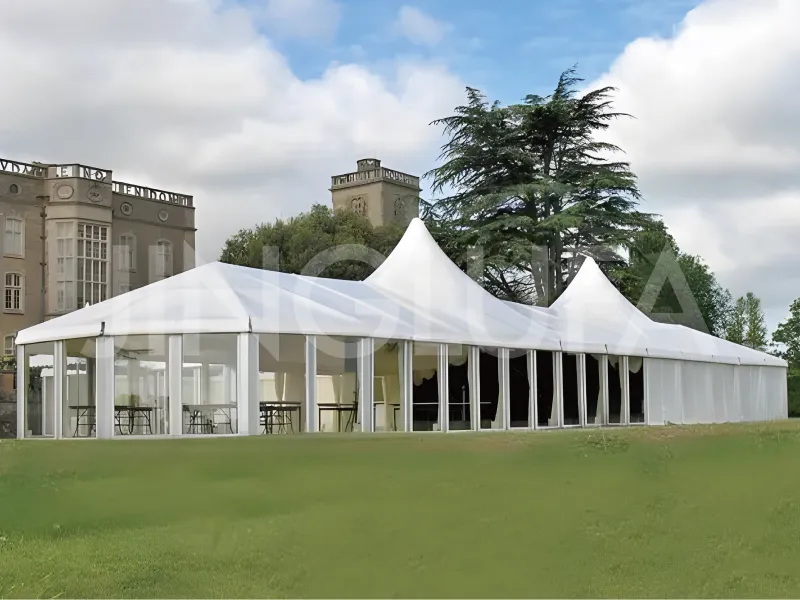

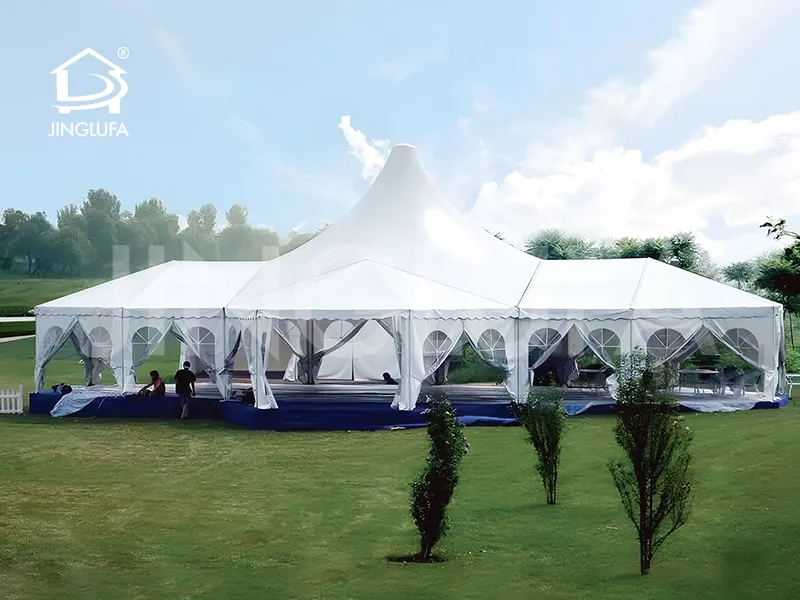

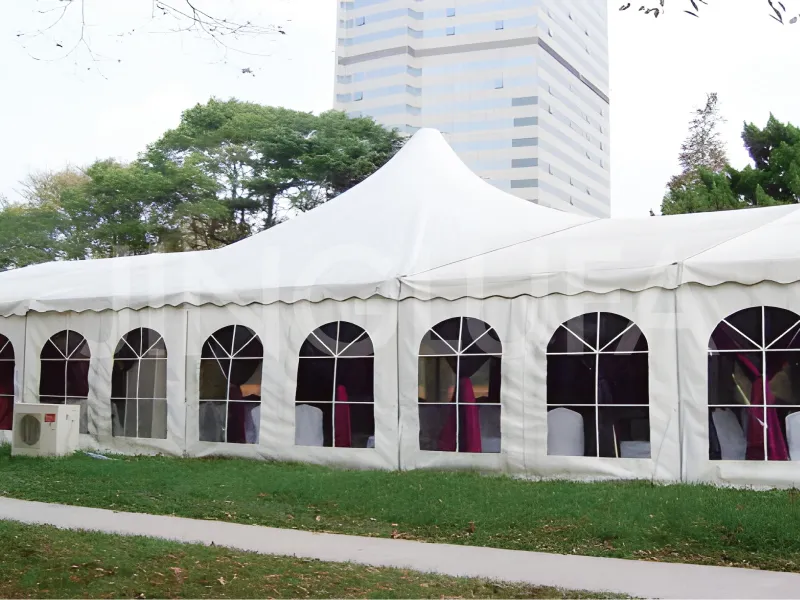

To elevate the atmosphere of outdoor wedding receptions, festival celebrations, product promotions, and luxury sporting events, event organizers and venue managers need distinct, high-impact temporary structures. The High Peak Mixed Tent system from Jinglufa offers an architectural masterpiece that seamlessly combines pointed or half-polygon units into customizable, modular marquee configurations. Engineered with precision industrial aluminum profiles and weather-resistant PVC textiles, our high peak tents deliver an eye-catching silhouette, exceptional structural stability, and effortless assembly for glamorous outdoor activities.
Engineered for safety, durability, and rapid deployment, our high peak mixed marquee structures are built using premium industrial-grade aluminum alloy profiles paired with heavy-duty steel connectors. The framing system is tailored across span sizes to maintain maximum load-bearing integrity:
Heavy-Duty Aluminum Alloy Framework:
4m – 10m Spans: $48 \times 84 \times 2.7\text{ mm}$ main profile cross-section (2.5m eave height, 3m bay distance).
10m Span Option: Heavy-duty $68 \times 122 \times 3.0\text{ mm}$ main profile cross-section (2.5m eave height, 3m bay distance).
15m Span Option: $88 \times 166 \times 3.0\text{ mm}$ main profile cross-section (3m eave height, 5m bay distance).
20m – 25m Spans: Heavy-duty structural profile system engineered for high-clearance stability (3m eave height, 5m bay distance).
30m – 40m Extra-Large Spans: Massive $113 \times 255 \times 5.0\text{ mm}$ main profile cross-section designed for grand exhibition and large-scale wedding spaces (3m eave height, 5m bay distance, peak height up to 9.7m).
High-Performance Weatherproof Textiles:
Roof Covers: 750g/m² block-out PVC fabric providing maximum sunshade, heat resistance, and UV protection.
Sidewalls: 650g/m² translucent PVC fabric for soft ambient light filtering.
Customization: Optional fabric weights, clear PVC windows, and custom coatings are fully supported.
Versatile Dimension Configurations:
Span Widths: Available from 4m up to 40m clear-span options.
Eave Heights: 2.5m for standard sizes (4m–10m) and 3m for large-scale spans (15m–40m).
Peak Heights: Scalable from 3.2m up to an impressive 9.7m high peak.
Event hire firms and wedding venue operators rank Jinglufa’s wedding marquee tent solutions among the best investment options due to key commercial advantages:
Short Construction & Rapid Setup: Pre-engineered modular components ensure fast installation and rapid knockdown, reducing labor costs and turnover times between consecutive events.
Striking High Peak Silhouette: Features a distinctive pointed roof shape that creates an upscale, romantic, and memorable visual backdrop for VIP parties and ceremonies.
Flexible Modular Combinations: Easily connects high-peak units with polygonal or standard marquee frames to create unique multi-zone event layouts.
Compact Storage & Transport: Dismantles into low-volume modular units, ensuring cost-effective warehousing and convenient transportation across long distances.
Advanced Safety & Stability: Rigorously tested frame design guarantees wind stability and guest safety during outdoor galas and corporate functions.
Full Range of Accessories: Seamlessly integrates with glass walls, flooring, luxury linings, and climate systems to transform raw space into a 5-star venue.
| Span (m) | Bay Distance (m) | Eave Height (m) | Ridge Height (m) | Technical Notes & Applications |
| 4m – 10m | 3m | 2.5m | 3.2m – 4.2m | Compact high peak combination tent. Ideal for VIP lounge entrances, ticketing hubs, luxury garden parties, and boutique event stalls. |
| 15m – 25m | 5m | 3m | 5.55m – 7.2m | Medium-to-large high peak mixed marquee. Perfect for luxury wedding banquets, corporate gala receptions, product launches, and catering halls. |
| 30m – 40m | 5m | 3m | 8.05m – 9.7m | Heavy-duty mega high peak structure. Engineered for grand sports event centers, music festival VIP lounges, and large-scale commercial exhibitions. |

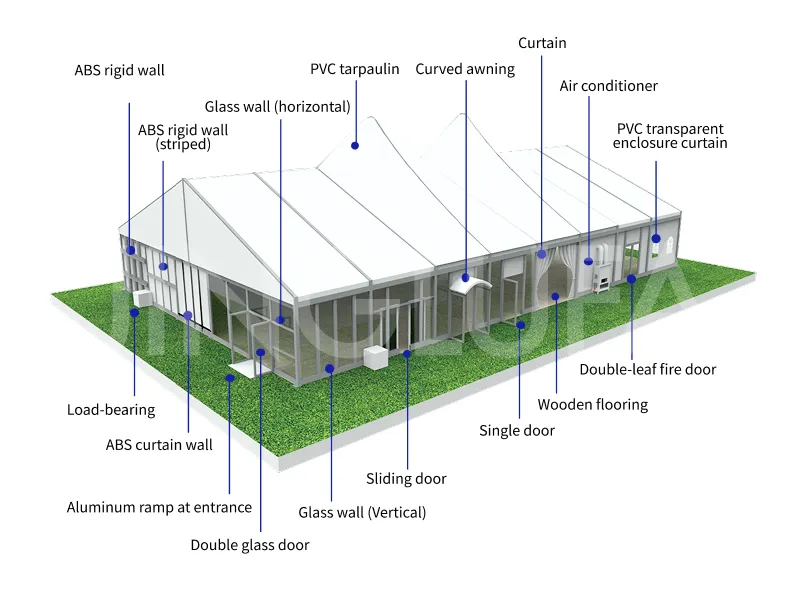

Note: High peak mixed tents combine the elegant aesthetic of high-peak pagodas with the modular clear-span space of frame tents. Fully customizable options include transparent PVC roof covers, glass curtain walls, double entrance doors, cassette flooring systems, and internal ceiling drapes.
System Category | Outfitting Options | Operational Benefit |
Wall & Window Systems | Clear PVC arched windows, tempered glass wall panels, ABS solid sidewalls | Enhances aesthetic elegance, natural daylighting, and complete weather isolation. |
Flooring & Access Control | Cassette wooden flooring systems, double-wing glass entry doors | Provides a stable, level floor for dining/dancing and creates a grand entrance for guests. |

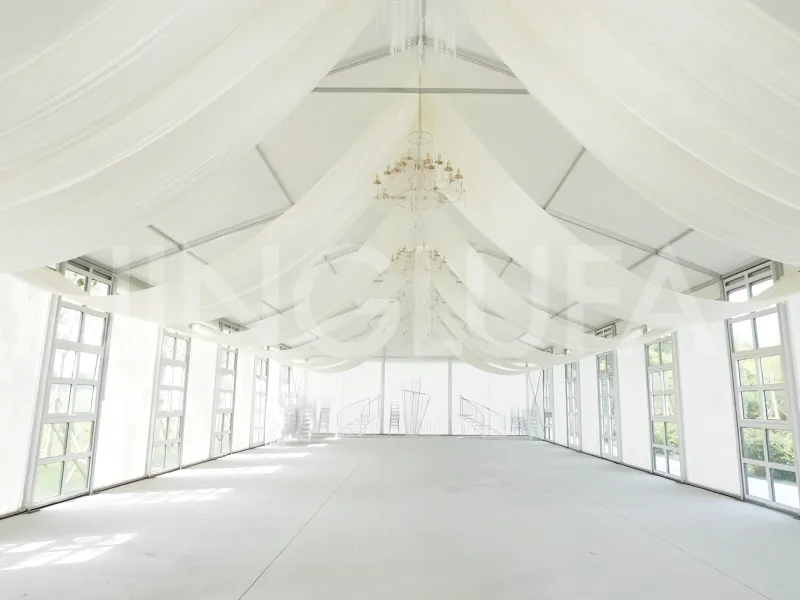

Interior Styling | Pleated roof linings, silk drapes, ambient chandeliers, color LED lights | Delivers high-end wedding and gala decoration without requiring secondary structural support. |
Climate & Comfort | Industrial tent HVAC units, rain gutters, ventilation systems | Guarantees 24/7 guest comfort across all seasons and manages rainwater drainage effectively. |
Jinglufa produces certified, premium high peak marquee solutions tailored for wedding rental providers, resort venues, and international event organizers. We support custom spans, bespoke fabric options, and global direct factory shipping.
Elevate your outdoor event capacity with versatile, iconic high peak temporary venues.
